How to crimp RJ45 connector using Cat 5e cable?

Asked By D. Heffner 30 points N/A Posted on - 08/19/2016

Hey! I want to make an Ethernet cable for custom length size. I have already bought Cat 5e cables in bulk and RJ45 connectors. Now, can anybody help me by telling how to crimp RJ45 connector?

• Status: Open
• Question Views: 395
• Answer Count: 1
• Vote Up 0 Vote Down

• Answer Accepted: No
• Question Category: Hardware Components

Answered By Xander Jason 10 points N/A #108357

How to crimp RJ45 connector using Cat 5e cable?

Since, the pre-made Ethernet cables are expensive to purchase in case you need a lot of them. So, it’s better that you if you can make it at home by yourself. Here’s all that you need for your help:

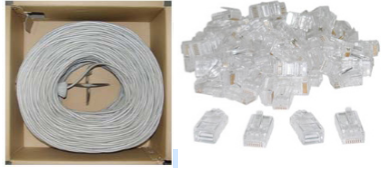

 Purchase the Cat 5e cable and RJ45 crimpable connectors in bulk.

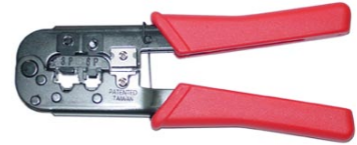

 Also, buy a RJ45 Crimping Tool.

 Now, to make a standard cable, firstly, cut out the plastic cover from the end of the Cat 5e. You can use the razor blade for this purpose.

 Now, unwind the different coloured wires and pair the similar ones.

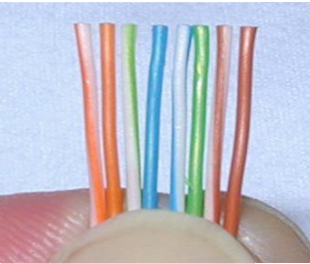

 Next, straighten the wires and arrange them in the order shown below.

 Use scissors to shorten them about ½ inches.

 Now, push all the 8 wires into the connector carefully. The result should look like this exactly.

 Lastly, using a crimping tool, lock the sleeves for a tight compression fit, and the end product is ready to use.



 Repeat the steps for the other end of the cable.
