How to make global configuration packet tracer

Asked By bonnern eville 0 points N/A Posted on - 02/02/2013

Dear Experts,

I want to know, how can we make global configuration packet tracer com ISDN? I have tried a lot but could not succeed, please write in detail.

• Status: Open
• Question Views: 1740
• Answer Count: 1
• Vote Up 0 Vote Down

• Answer Accepted: No
• Question Category: Misc Networking

Answered By Sinky Lynn 0 points N/A #165406

How to make global configuration packet tracer

Hello,

For example if you want to establish a network that can carry both data and voice traffic over the same media you most probably want to choose the Cisco 2600 or 3600  voice interface cards.

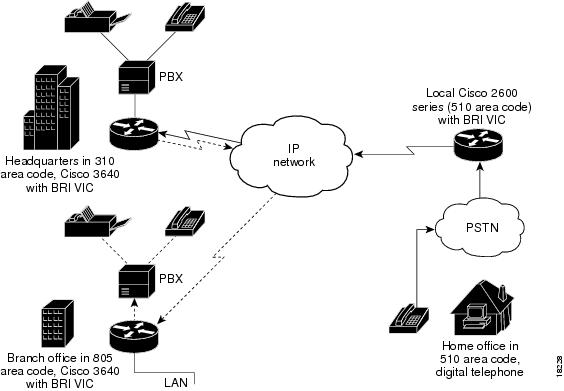

As a case study consider the network layout in the diagram

Terms

         I.            ISDN- Integrated Services Digital Network

        II.            BRI- Base Rate Interface

      III.            PSTN- Public switched telephone network

      IV.            VIC- Voice interface card.

       V.            PBX –Private Branch Exchange

In your configuration you will need to establish

1.       BRI (base rate interface) characteristics

2.       Define global parameters on each device

3.       Configure all the interfaces with appropriate  IP details

4.       Finally configure VoIP on dial peers

To establish these sets of configuration please visit the following website for a worked out example

https://www.cisco.com/c/en/us/td/docs/ios/redirect/eol.html
