How to publish dwg trueview plot black white from AutoCAD?

Asked By Samantha Noland 0 points N/A Posted on - 05/11/2013

Hello Techyv members. I would like to know how to publish dwg trueview plot black white from AutoCAD? What are steps needed for this to be successful? Is this possible in anyway? I'll be looking forward for your answers and suggestions. Please let it be specific and detailed as necessary.

• Status: Open
• Question Views: 1166
• Answer Count: 1
• Vote Up 0 Vote Down

• Answer Accepted: No
• Question Category: Photos / Graphics Soft.

Answered By Knight Frakes 5 points N/A #144565

How to publish dwg trueview plot black white from AutoCAD?

Greetings,



DWG TrueView allows you to view DWG and DXF files just as AutoCAD does, since they are built on the same viewing engine.

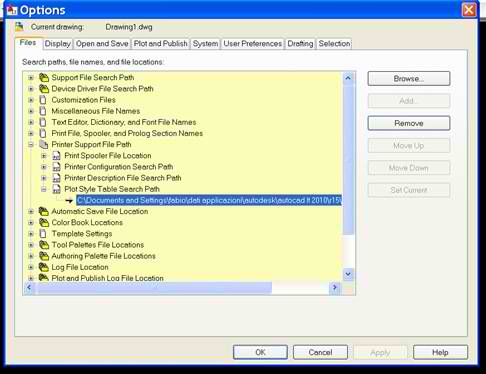

You will need a .ctb or .stb file to plot in black /white, pretty much like plotting in AutoCAD. You may need to find out how to create the .stb or .ctb file. Plot styles are very similar to AutoCAD. Go to Tools, then Options. Under the Files tab, look for Printer Support File Path, and place the .stb or .ctb file in the path listed in Plot Style Table Search Path. After doing so, the drawings should plot correctly.
