Interrupts and how to cope up with them in instruction cycles

Asked By Paul M Lucero 5 points N/A Posted on - 03/30/2016

What is an interrupt in an instruction cycle? How to deal with an interrupt? Also, in what part of the instruction cycle does the processor check for interrupts?

• Status: Open
• Question Views: 351
• Answer Count: 1
• Vote Up 0 Vote Down

• Answer Accepted: No
• Question Category: Anonymous

Answered By Edwardo B Patton 0 points N/A #183233

Interrupts and how to cope up with them in instruction cycles

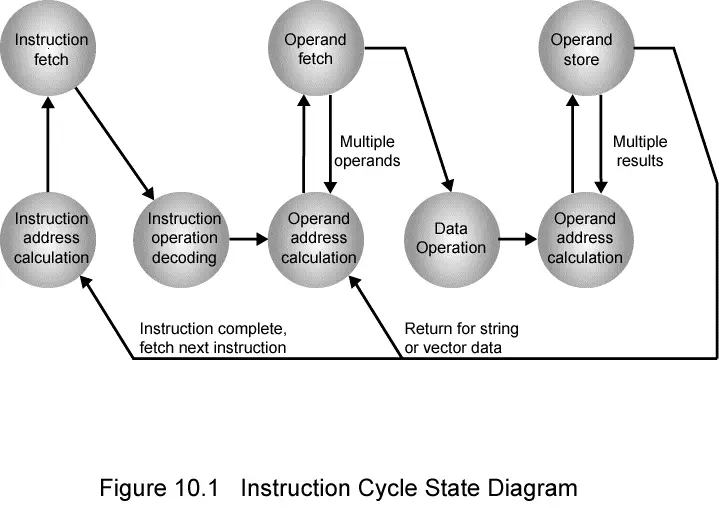

The diagram shown below is of an instruction cycle: –





In the instruction cycle, sometimes an error may occur or a warning might be issued called as an interrupt. This happens in the last part of the instruction cycle. The processor checks for interrupts only after the data has been processed. When the interrupt flag=1, the contents of the Memory Address Register are transferred and stored in the stack and the address of the Program Counter is changed to match the address of the interrupt handler routine. As soon as the interrupt is dealt with, the contents of the stack are popped and stored back in the Memory Address Register and address of Program Counter is changed back to that of the next instruction.
