Problem in installation of USB driver for an eval board

Asked By otis hartwell 40 points N/A Posted on - 04/18/2012

Problem in installation of USB driver for an eval board

I have recently bought an eval board for ADF4150, which is Eval-ADF4150EB11Z; but I faced problem to run it. It wasn’t getting the usb driver installed. I found the board CY768013 for the usb drive.

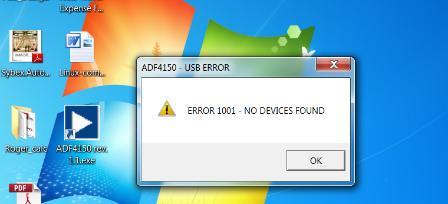

I got the usb driver updated and installed through the communication with Cypress. But when I got the power on, the interface was still indicating “no usb”. The error message is attached here for clarification.

ADF4150 – USB ERROR

ERROR 1001 NO DEVICES FOUND

OK


I need someone to solve this issue. Please help me to solve it.

You have no comments to approve.

• Status: Open
• Question Views: 956
• Answer Count: 1
• Vote Up 0 Vote Down

• Answer Accepted: No
• Question Category: Hardware

Answered By Thathri elsebet. 0 points N/A #147463

Problem in installation of USB driver for an eval board

Hi,

You know that the eval board is the software well-matched with ADF4350 which is helpful for the programming sequence of software, universal variations.

The resolution of PLL is PFD/2 25 and providing an ultrafine resolution of applications requiring simple programmability. The eval board for ADF4150 uses the typical programming software ADF4350, limited to the CD that goes with the evaluation board.

You require to go through the full installation procedure. However, it is to be noted here that to reduce discarded interference, both part of the cable should be grounded to appropriate GND points on both board. It will be ok.

I hope you understand it.
