Provide any Citrix Connection diagram

Asked By Ethan Jessica 0 points N/A Posted on - 02/08/2013

Hello Techyv Friends,
Please do the needful for providing me any Citrix Connection diagram that covers the connections to and from the Access Gateway appliance and Advanced Access Control servers including user & administrator access. I need it for a review purpose, so please do the needful for getting it.
Thanks & Regards,
Ethan Jessica

• Status: Open
• Question Views: 862
• Answer Count: 1
• Vote Up 0 Vote Down

• Answer Accepted: No
• Question Category: Suggestions

Answered By Spreckelmeyer Kayla 0 points N/A #189549

Provide any Citrix Connection diagram

Hello Ethan,

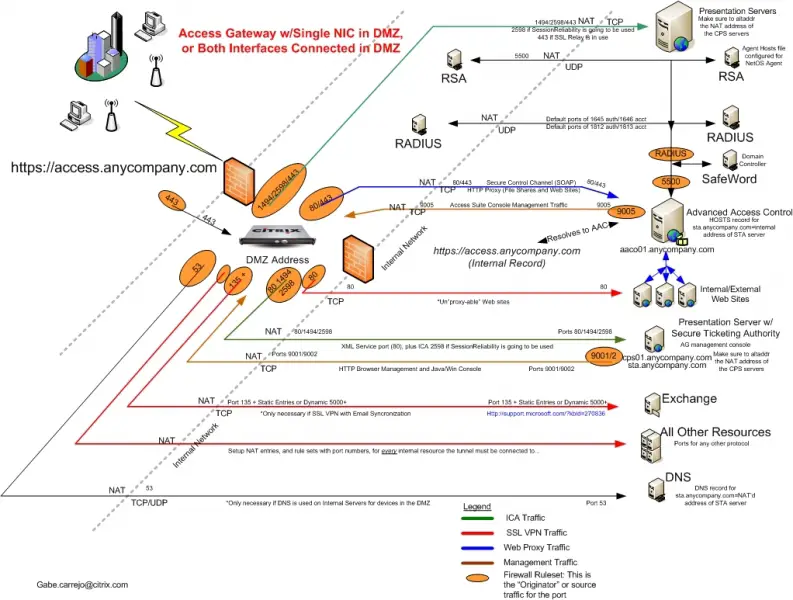

As we all know that a NetScaler resides between the clients and the servers. In a typical installation connection points are configured by the vservers. Citrix Presentation Server topology diagram is actually a hierarchical representation of a XenApp deployment. It shows farms, servers, zones, license servers and their relationship. Here is a simple diagram for you.

About Spreckelmeyer Kayla

Questions
1

Answers
135

Best Answers
23

• Vote Up 0 Vote Down

• Posted on - 03/02/2013
• Question Category: Suggestions
