Where is ACAD plot jpeg free download file?

Asked By andrew patersson 0 points N/A Posted on - 02/19/2013

Hi and good day Techyv friends and pals!

We know ACad (AutoCAD) has a PC3 printer that will print to JPEG but the quality and also the resolution were terrible. Now here are my questions, is it possible for the Acad plot to JPG? Where is ACad plot JPG free download file? Any help would be appreciated. Thank you very much.

Andrew Patersson



• Status: Open
• Question Views: 643
• Answer Count: 1
• Vote Up 0 Vote Down

• Answer Accepted: No
• Question Category: MultiMedia Applications

Answered By Drake Vivian 30 points N/A #170746

Where is ACAD plot jpeg free download file?

Hi there Andrew Patersson,



The simple answer to your question would be – yes, there are ways to export your ACAD drawing as the quality JPEG.



First you have to rasterize your image. Under the File menu find and click the Plotter Manager.

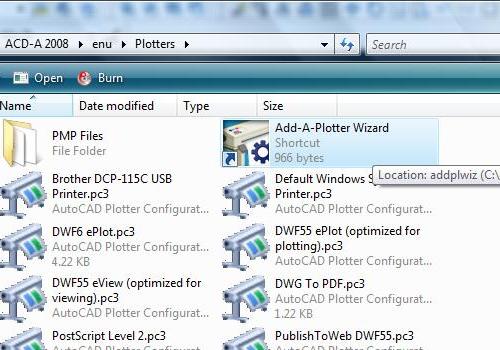

Double click the Add-a-Plotter wizard. The wizard will open and will guide you through the process, you just have to go with the flow and click next.





Once you're on the Plotter Model page, select Raster File Formats in Manufacturers section. Under models choose Independent JPEG Group JFIF and click next. On one of the following screens make sure that the Plot to File is selected, and continue with the wizard until it's done.



After the wizard is closed you will be able to select the driver when plotting from ACAD to create a JPEG image.
